Part Number Help: Wiring Harness :(

elizium

Joined
14 November 2005
Messages
386
Reaction score
0
Points
16
Location
Moscow, Russian Federation
Website
www.mys15.org
Hi all..

having an issue trying to work out in FAST what the part number is for the sub harness for the ignition coils is.

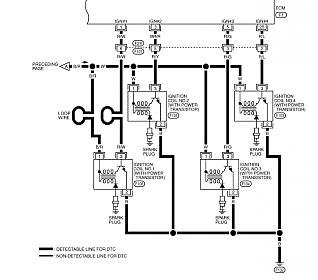

I have attached an image from the service manual.. basically I need the one that has the connectors 101-106 on it. FAST isn't very clear on the major numbers.

I already have the sub harness for the injectors (24075-85F00), the main harness (24011-85F00) and the battery +ve harness (24077-85F00)... just can't for the life of me suss out which one is for the coil packs.

Anyone with a clue - please help :)

Cheers

Chris


Attachments

elizium

Joined
14 November 2005
Messages
386
Reaction score
0
Points
16
Location
Moscow, Russian Federation
Website
www.mys15.org
OK .. found it... it wasn't on section 240... that is why it was hidden :)

Part number - for reference in case anyone else needs it in future is: 24079-91F00.

With the part numbers above you should have all the wiring harnesses you need to connect the ECU to the engine... :)
