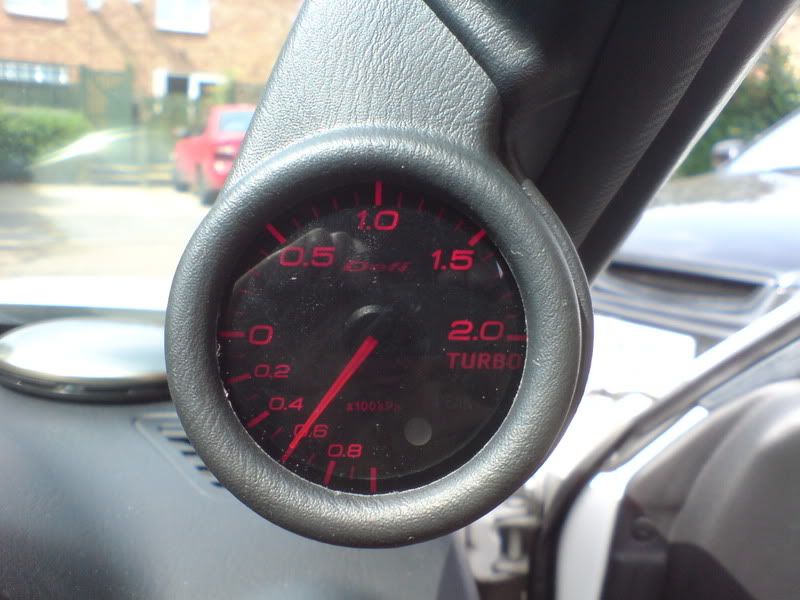

Firsly how the standard Oem gauge sits and looks
I know most of u know that but have to say it dont I :D

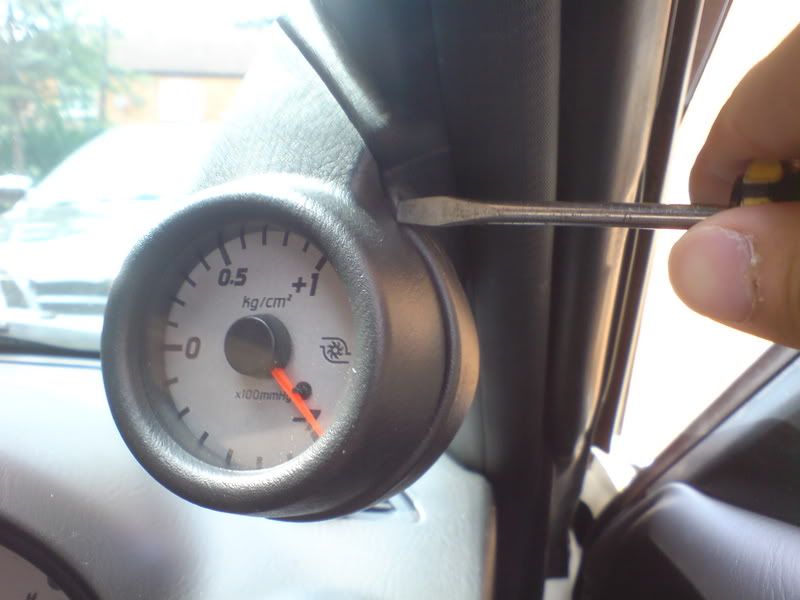

Get a flat beded screwdriver either on the side or bottom gently push it in and remove the front face or the plastic which holds the Oem Gauge in..


There one bolt which needs to be undone to get the A pillar off either use a cross headed screw driver or a 10mm

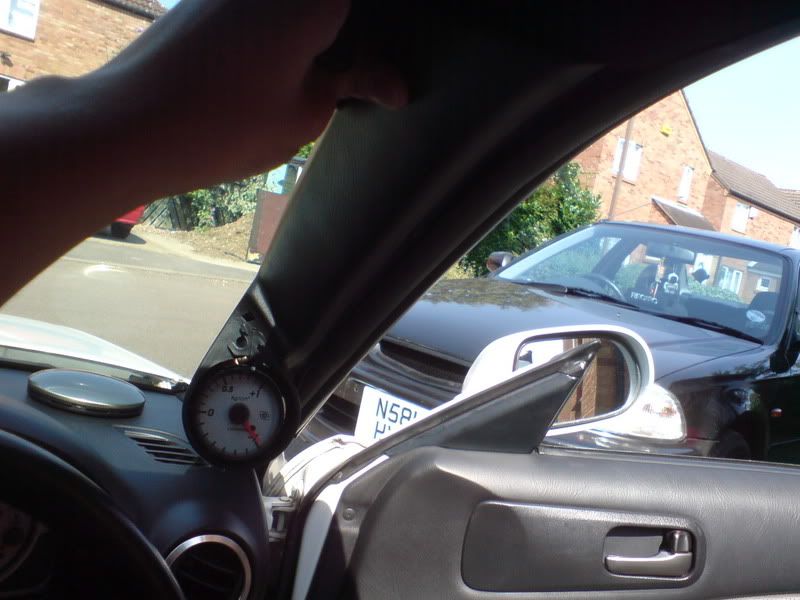

The either use a flat ended screw driver and slowly insert to the side of the pillar and pull gently from the top to remove the a pillar

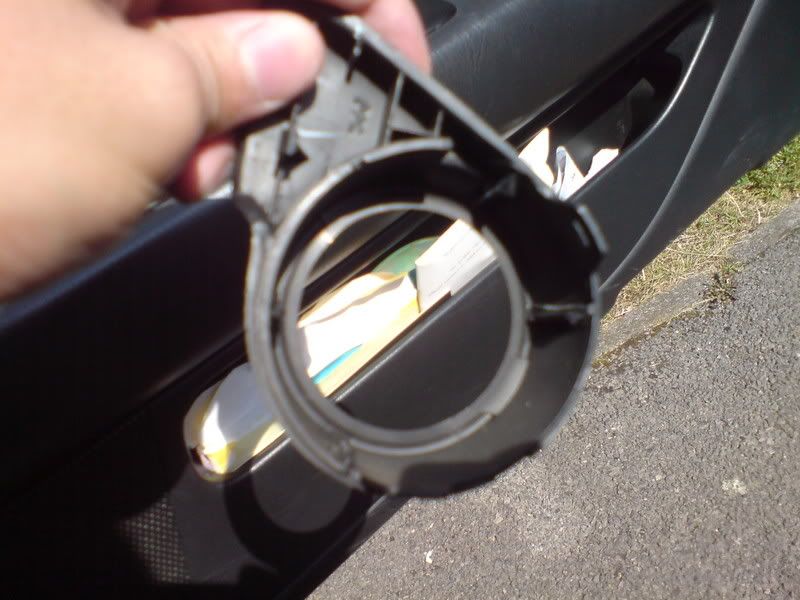

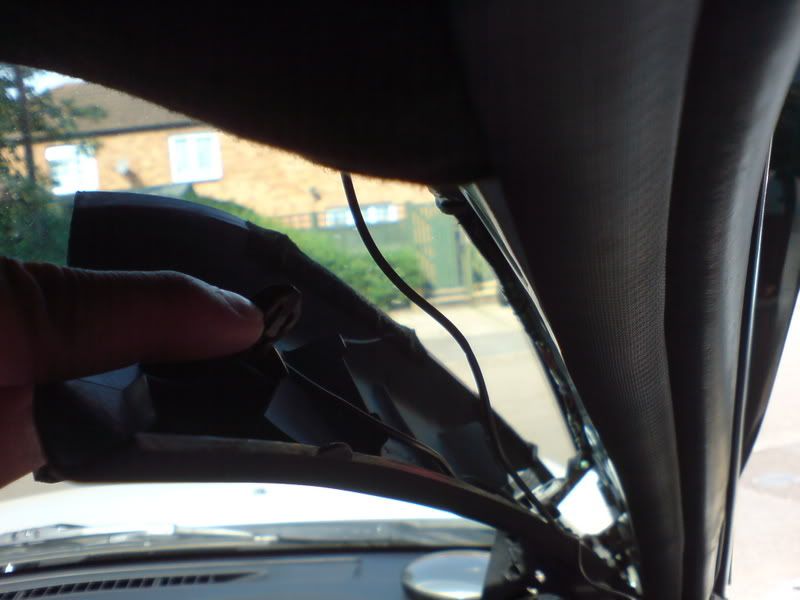

There are 3 clips which hold it in show in the photo dont use too much force they will just pop out

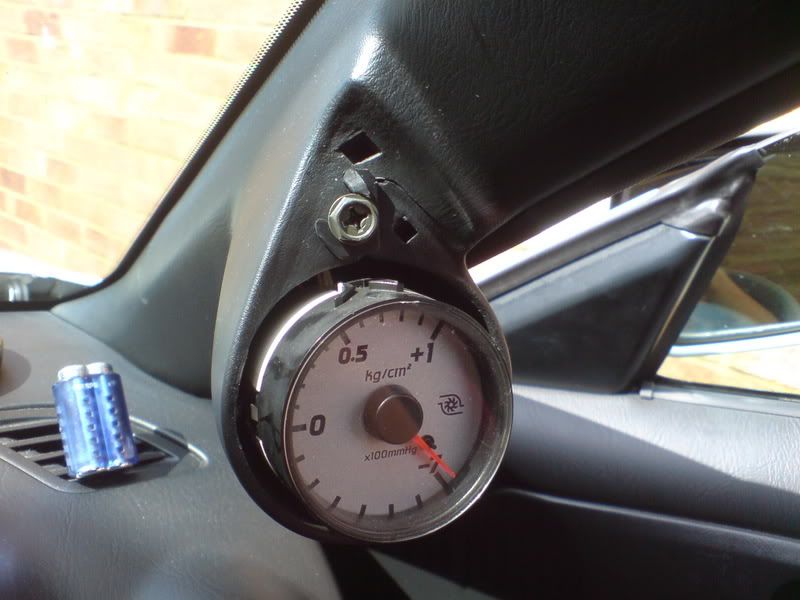

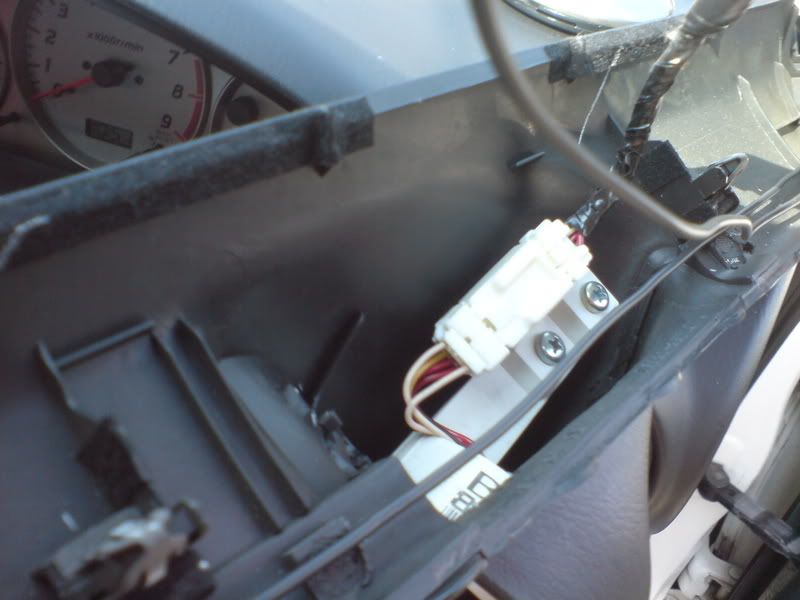

once i have got that off there are two screws which need to come off before u take the oem gauge out u can use a cross headed screwdriver the unclip the gauge

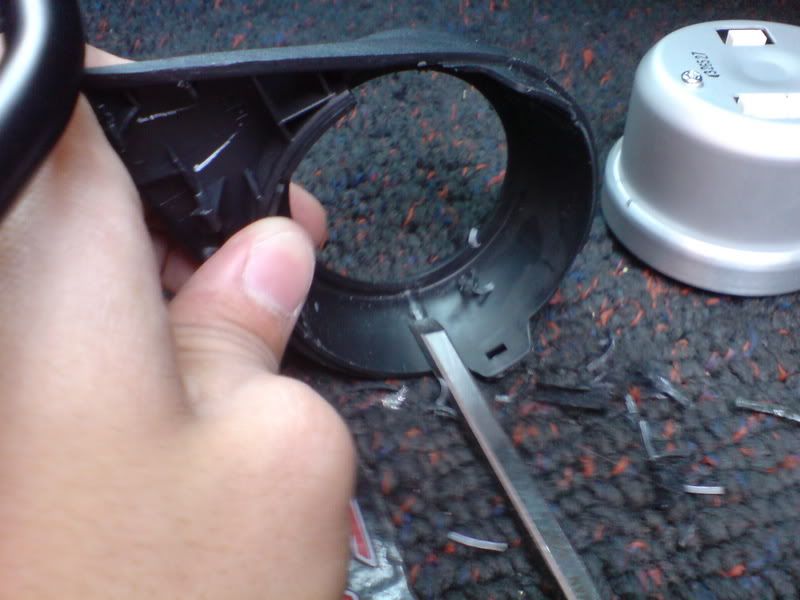

once thats done u need to cut away the inside off the face which holds the gauge in to let the gauge fit flush i used a small chisel

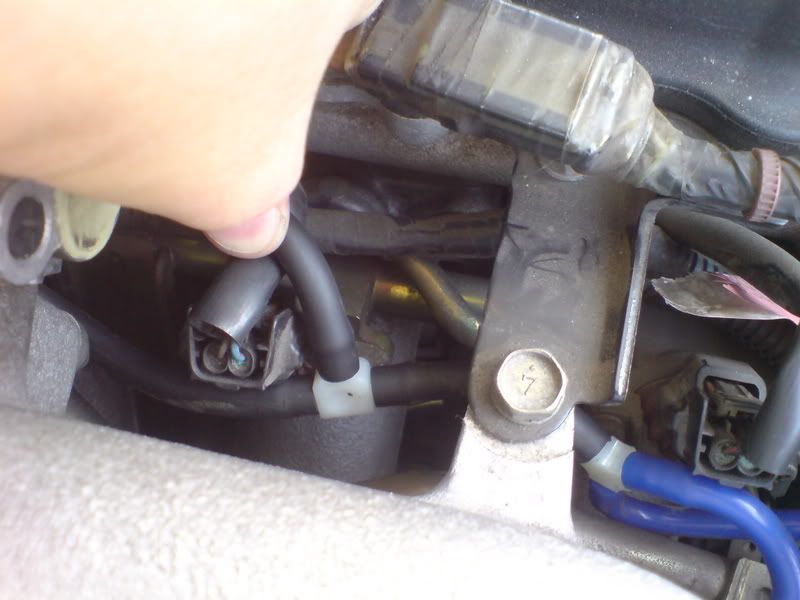

once that is done need to T in the pipe to here a pic of how i did it as ive got a controller aswell so just cut the pipe a bit then used the T piece and split it into two again...


sushiming

🔥 Contributing Member 🔥
Joined
13 November 2005
Messages
2,704
Reaction score
0
Points
36
Location
Hong Kong
Website
www.s15oc.com
Country
then need to feed the wire into the dash which was pretty easy used the same place as my other wires did needs tidying up tho

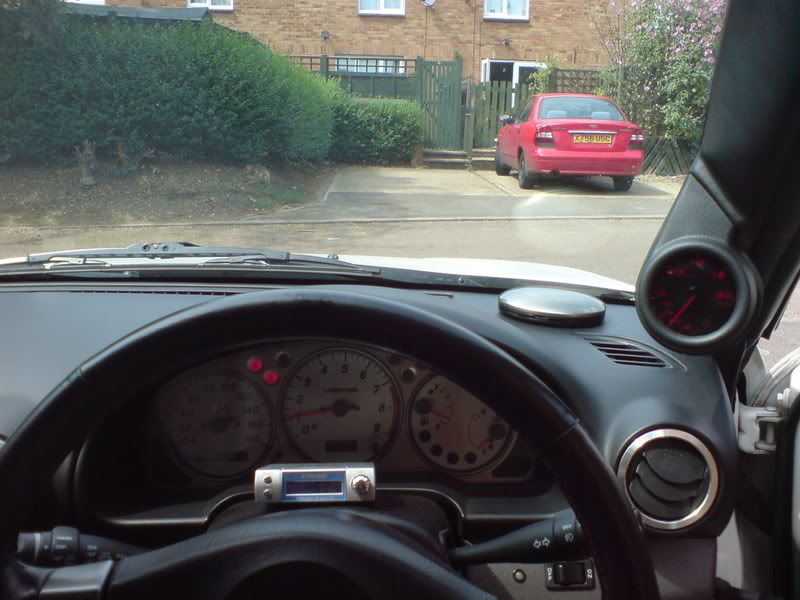

Then just fit everything back together as it was being carefull not to brake anything while doing it and there u go Oem out Defi in
