Got the S15 up on the ramps for the first time tonight and spotted some extra chassis/ suspension parts i didnt know i had. I'm unsure on what each part is as im not really clued up on all this! If someone could let me know from these crap pictures (sorry!) what they are, that would be great!

This part is in line with the front of the wheel arches and goes right across from side of the car to the other. Is this some form of adjustable anti roll bar?

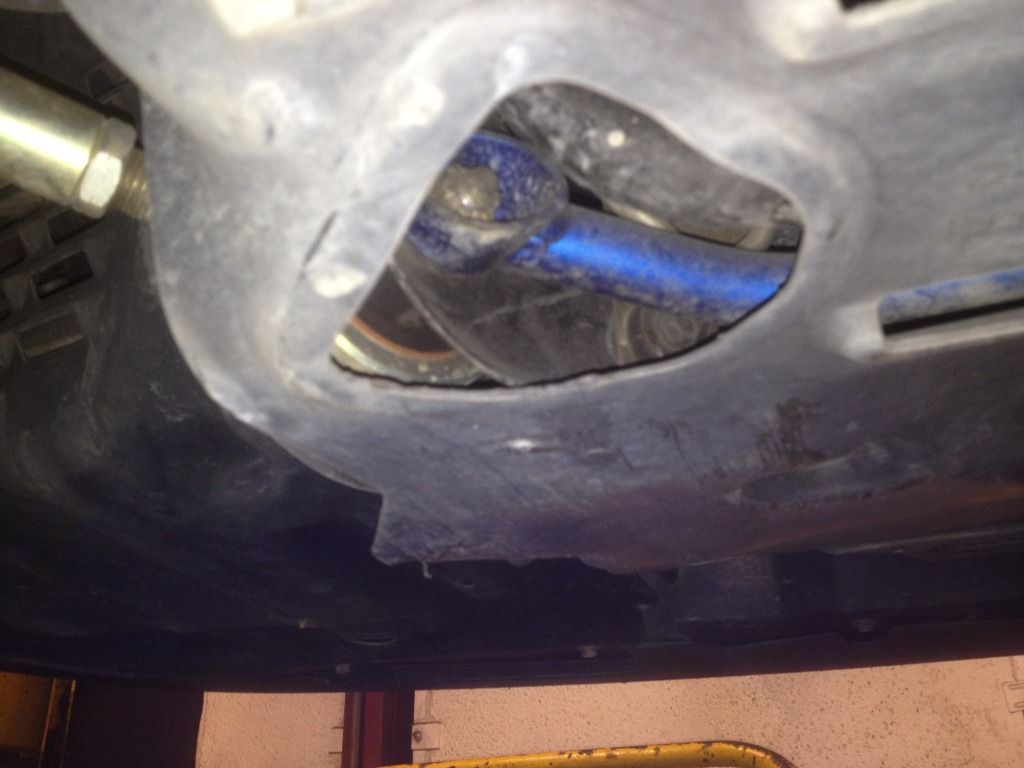

Second is this part. Am i right in saying its a Tension Rod?

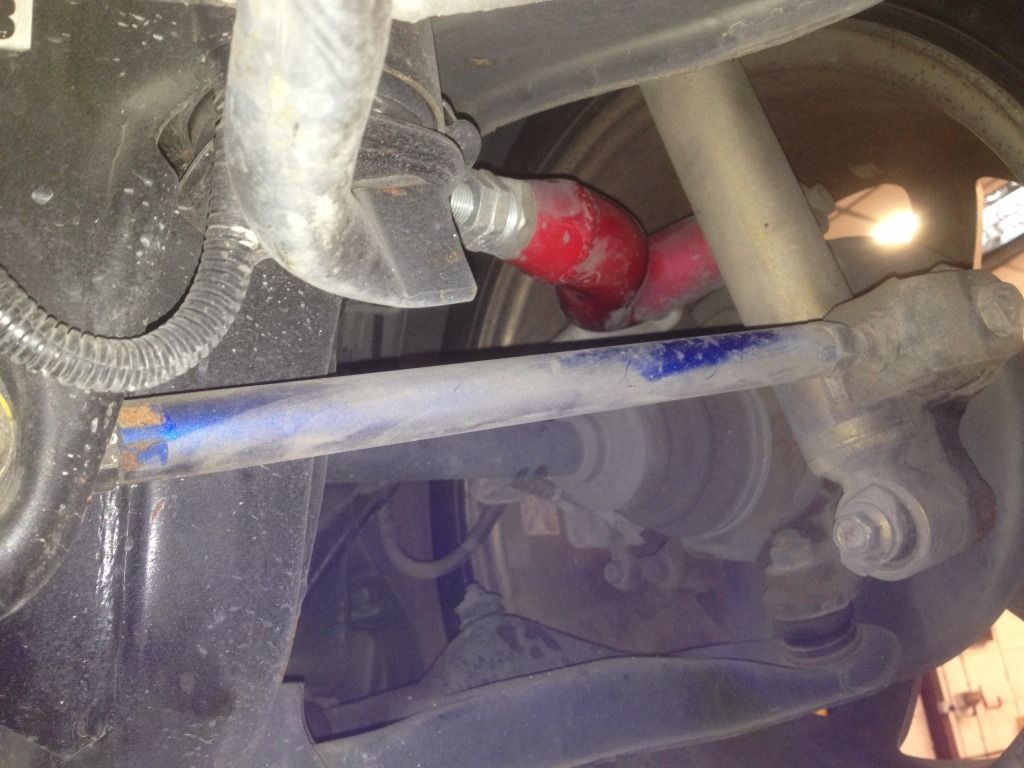

Last picture; Fairly certain the red part is a camber arm but unsure on the blue one?





Thanks Guys! :D

Joined
1 March 2011
Messages
258
Reaction score
0
Points
0
Location
leicester
Country
All yes although might not be an adjustable ARB, the adjustment is in the center, ikeya formula are parts are top quality! :cool:

Joined
25 July 2011
Messages
327
Reaction score
0
Points
0
Location
Telford - England
Country
There is an adjustable portion on that front ARB in the center. Just wanted to confirm that it actually was an ARB ha! Still unsure on the blue part on the final picture?

I looked up Ikeya Formula and ye i found that out! Happy with that ha!

Joined
9 May 2013
Messages
619
Reaction score
0
Points
0
Location
Cornwall
Country
Pretty sure the blue effort in the last picture is an adjustable toe arm bud.

You have to use the bits of wood to get it on the ramp?

Joined
9 September 2009
Messages
1,864
Reaction score
0
Points
0
Location
New Zealand
Country
1st Pic Tension Rod bar (Adjustable)
2nd Pic Castor Arm (adjustable)
3rd pic Red is Adjustable Camber arm - Blue is a Adjustable Toe arm

Joined
30 November 2007
Messages
2,152
Reaction score
0
Points
0
Location
Sunny Tweed Heads
1st Pic, You have a Cusco front sway bar and Ikea Formula adjustable Castor rod 2nd Pic is the I Formula castor arm 3rd pic is unknown Camber arm and Cusco toe arm

Joined
16 August 2013
Messages
262
Reaction score
0
Points
0
Location
W.Mids
Country
It's quite clearly a stock front ARB there, the blue bar is a tension rod brace similar to nismo power brace.
