On the OEM rear lights, are both bulbs for the side lights supposed to light up the second filament when you brake, or just one bulb on each side as I can't remember?
Cheers


CMR

Joined
22 August 2011
Messages
417
Reaction score
0
Points
0
Location
Yorkshire, UK
Country
Probably should be in electrical and audio, couldn't see it on Tapatalk when I posted apologises.


CMR

Joined
22 August 2011
Messages
417
Reaction score
0
Points
0
Location
Yorkshire, UK
Country
There has to be people active on here with the OEM rear lights.

All I want to know is, when the brake pedal is pressed, do both bulbs on either side illuminate, or just the outside bulb?

Shouldn't be too difficult for someone to go check, help much appreciated :thumbs:


Mike

Joined
16 May 2010
Messages
871
Reaction score
0
Points
16
Location
Somerset
Country
I don't have standard lights but they use the same bulbs, both of mine come on when the pedal is pressed.

Shame It isnt dark but hope this is clear-ish!

Off.

On.

:)


CMR

Joined
22 August 2011
Messages
417
Reaction score
0
Points
0
Location
Yorkshire, UK
Country
Cheers dude, yeah forgot to mention standard bulbs not necessarily standard lights.
Hmm that does answer my question but not the one I was after, mine only seem to light up the outside bulb on each side, however the side lights work fine on both bulbs?


Mike

Joined
16 May 2010
Messages
871
Reaction score
0
Points
16
Location
Somerset
Country
That is strange, yours have the fog light in standard don't they? Could it be possible they're wired up slightly differently? Clutching at straws there hoping something isn't going wrong! :/


CMR

Joined
22 August 2011
Messages
417
Reaction score
0
Points
0
Location
Yorkshire, UK
Country
That is strange, yours have the fog light in standard don't they? Could it be possible they're wired up slightly differently? Clutching at straws there hoping something isn't going wrong! :/

Yeah I have the standard fog from the factory.

Basically decided to go back to the standard lights, as got a bit bored of the D-MAX LED ones for now, and when refitting noticed that the brake light wasn't working on both bulbs... but after thinking about it, I don't think the D-MAX ones worked on both sets of LED's for the brake lights :confused: I never really thought about it but maybe I have a wiring issue somewhere.

Both bulbs definitely come on when the sidelights are on though, its just the second filament inside the bulb that doesn't :confused:


Daveizz

Joined
28 April 2012
Messages
306
Reaction score
5
Points
18
Location
Netherlands
Country
In Both OEM rear lights, there are the following bulbs:

-1 bulb for night light
-1 bulb for night light with brake light in it
-1 bulb for reverse
-1 bulb for side indicator

You'll see i mensioned the first 2 bulbs with night light, both will glow when turned on the lights, only on of them will glow harder when you brake.

I see you wanna go back to OEM lights, i want to buy D-Max Led, maybe we can arrange something?

Last edited:

CMR

Joined
22 August 2011
Messages
417
Reaction score
0
Points
0
Location
Yorkshire, UK
Country
In Both OEM rear lights, there are the following bulbs:

-1 bulb for night light
-1 bulb for night light with brake light in it
-1 bulb for reverse
-1 bulb for side indicator

You'll see i mensioned the first 2 bulbs with night light, both will glow when turned on the lights, only on of them will glow harder when you brake.

I see you wanna go back to OEM lights, i want to buy D-Max Led, maybe we can arrange something?
That's what mine do, but Mike's above doesn't as they both glow. Both bulbs are 7443 "Dual Filament" bulbs so both should glow brighter when braking.

I am keeping the D-MAX Led lights unfortunately :thumbs:


Daveizz

Joined
28 April 2012
Messages
306
Reaction score
5
Points
18
Location
Netherlands
Country
That's what mine do, but Mike's above doesn't as they both glow. Both bulbs are 7443 "Dual Filament" bulbs so both should glow brighter when braking.

I am keeping the D-MAX Led lights unfortunately :thumbs:
It depends if both have an brake wire, maybe mike's are looped.
My brake lights are on only one bulb, not both in the same rearlight.

And no problem mate

Joined
24 November 2009
Messages
1,121
Reaction score
0
Points
0
Location
North Yorkshire
Country
Weird.

I've got 2 sidelights per cluster, and 2 brake lights per cluster.

So total 4 rear sidelights, and 4 brake lights.

Just gives for better looks and visibility. :)


CMR

Joined
22 August 2011
Messages
417
Reaction score
0
Points
0
Location
Yorkshire, UK
Country
I presume you mean the brake light and sidelights are on the same two bulbs?

So 4 bulbs total, 2 either side


Jay-pan

Joined
6 May 2012
Messages
651
Reaction score
0
Points
16
Location
Shropshire. UK
Country
On the standard rear lights the whole bottom red section should light up when lights are one and when braking. There is 2 bulbs either side like you said and they should be a double filament.

If they only light up when the sidelights are on just means the wrong bulb has been put in have a look at it should see two filaments inside the bulb. Common size halfrauds sell them.

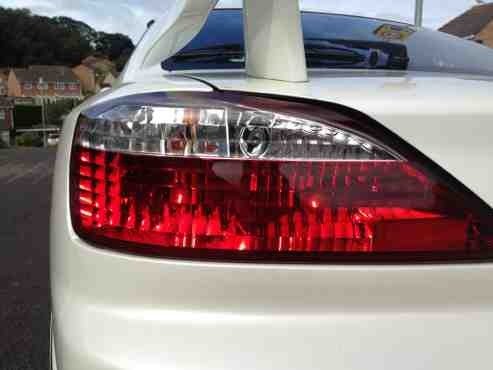

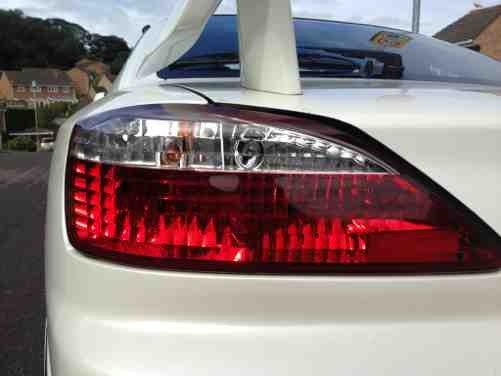

Should light up like this when braking and when on


CMR

Joined
22 August 2011
Messages
417
Reaction score
0
Points
0
Location
Yorkshire, UK
Country
They are 7443 as I have one in my hand, dual filament. If I put one that works when sidelights are on and when braking from the outside socket into the inside socket it still doesn't work when braking?
Anyone have any advice on things to try?


CMR

Joined
22 August 2011
Messages
417
Reaction score
0
Points
0
Location
Yorkshire, UK
Country
Took the lights off last night, double checked the bulbs. Then looked at the bulb sockets and think I have found the problem.

I know it takes a few minutes, but could anyone just whip one of their lights off and just compare the socket types they have?

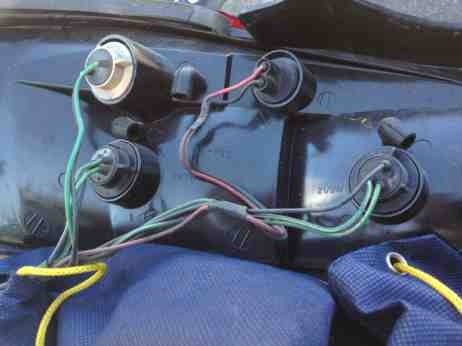

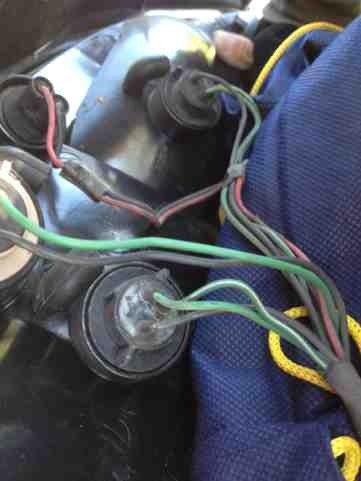

My "outer" socket that works as dual filament looks like this:

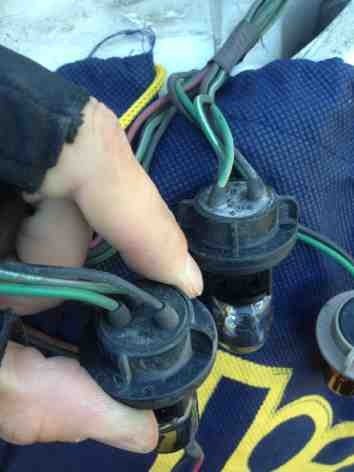

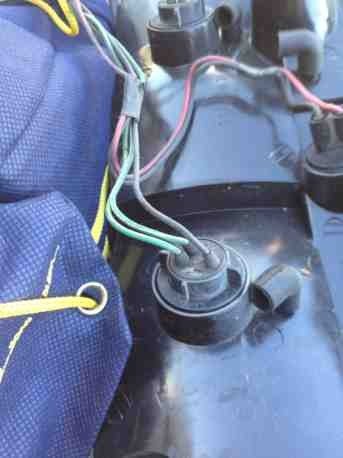

My "inner" socket that only works as a sidelight looks like this:





If anyone could confirm the colour and number of wires going into each brake/sidelight socket it would be a great help :thumbs:


Mike

Joined
16 May 2010
Messages
871
Reaction score
0
Points
16
Location
Somerset
Country
I've got some condensation in one of mine so I can whip it out and take some pics. But won't be till Wednesday since out on the mtb after work today!


Mike

Joined
16 May 2010
Messages
871
Reaction score
0
Points
16
Location
Somerset
Country
Hacked it to pieces earlier! Can confirm mine are different to yours. Pics.

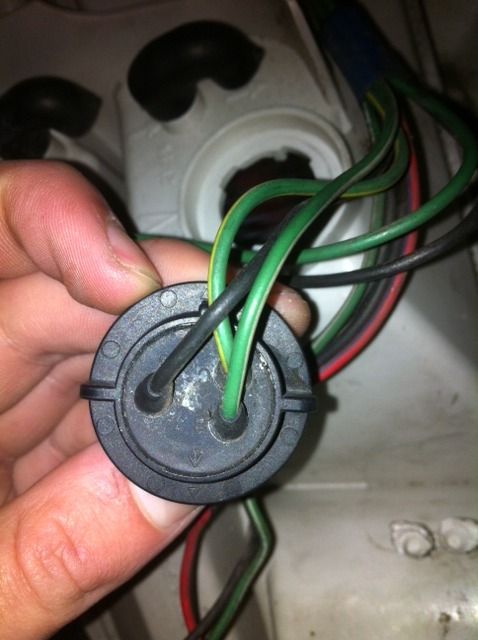

Inside

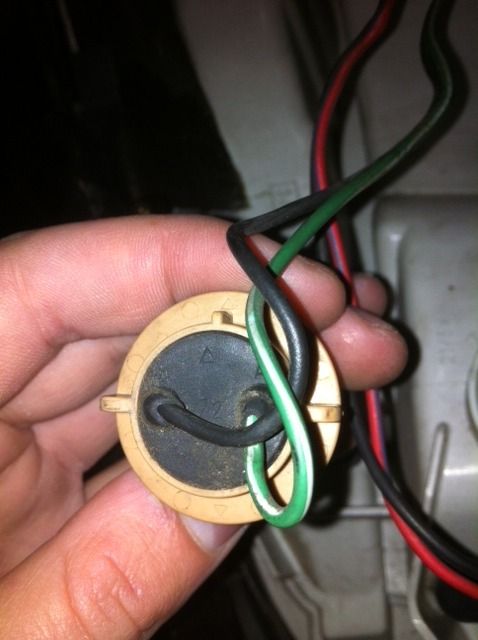

Outside


Top
