Fitting a Cusco rear strut brace to a Nissna SIlvia (200SX) S15

This is a guide on fitting this,



Into one of these.



WARNING: MAKE SURE YOUR CAR IS ON A LEVEL SURFACE AND YOU TAKE ALL THE APPROPRIATE SAFETY PRECAUTIONS. S15OC OR MYSELF WILL NOT BE LIABLE FOR ANY DAMAGE CAUSED TO YOU OR YOUR CAR WHILE USING OR FOLLOWING THIS FITTING GUIDE.

1) Fold down the rear seat.



2) Remove the Child seat restraint hook (marked with a red circle. It's 12mm bolt if you have one). To remove parcel shelf, firstly remove your 3rd brake light. Press on the sides of the brake light and lift up at the front. Then slide the light towards the front of the car. Disconnect any wiring. Then to remove the parcel shelf itself, slowly apply upward pressure on the parcel shelf. There are 5 clips that hold the parcel shelf on. It should pop off quite easily.



3) This will expose the top of the rear struts. Remove the 2 x 12mm nuts (marked with read circles) and the black reinforcing ring.

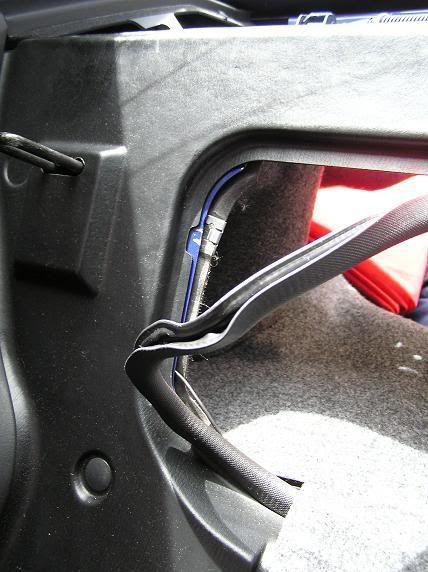

4) Remove the rubber trim and fold back the cardboard backed carpet. This may require a little effort to get the carpet to sit right. This will expose a hold in the forward part of the recess where the top of the strut bolts to.





5) Fit the bracket to the top of the strut. This may take a little work as you have to make both brackets fit through the small hole in the strut recess and get the bracket to fit on top of the strut threads.






Last edited:

meddler

It's not easy being a green text speak nazi
Staff member
Moderator
Joined
17 October 2007
Messages
3,089
Reaction score
0
Points
36
Location
Australia
Country
Cont.....

6) Don?t tighten anything yet. If you do so, you may find it difficult to fit the cross bar. Fit the other bracket to the other side of the car. The proceedure is the same as the side you just did. Once this is done, fit the cross bar and then you can tighten everything up. (all nuts are 12mm and the nut and bolt for the cross bar are 14mm) Adjust the carpet that you moved out of the way if desired and put all the trim back together.





There you have it. You now have a nice shiny rear strut brace :)
